Below are the modem signal levels and details. Odd thing is, it looks like the modem got a firmware update since yesterday, as the login screen was different and my password no longer worked. I had to factory reset it to use the default login/password combo.
I also got a 404 when trying the "hidden" main page, that info seems to be part of the Status page, minus the extra details.
Darn. Was hoping that trick worked so I could suggest it to other people. However I don't think it's related to the config. file if the speed is intermittent.
What I DO see is a problem with your downstream OFDM channel. It is registering a VERY low signal(-46dB) and doesn't show a SNR. Does that change when your speed changes? Either way, I would think a technician can troubleshoot that issue.
BTW, delete the second screenshot. It shows your MAC address which should be private.
Thanks. I was curious about that 159 OFDM channel too, but couldn't find much info on its purpose or what was an in spec value. Docs only talked about the QAM256 channels and their acceptable values.
I haven't been able to reproduce the ~900Mbps download speeds yet this morning. Trying to troubleshoot in between work calls, but now I have time to direct connect my laptop to the modem and see if I can get the high speeds and observe the modem values.
Thanks. I was curious about that 159 OFDM channel too, but couldn't find much info on its purpose or what was an in spec value
The OFDM channel is what separates a DOCSIS 3.0 modem and a DOCSIS 3.1 modem. If you can think of the QAM channels like single lanes on a highway, then OFDM is like a speed lane multiple cars wide. See here for a more technical discussion. AFAIK the OFDM should be within the same specs as the QAM channels.
Got it, that was helpful.
I did some more digging on ch159 OFDM acceptable values and I see a lot of info that shows SNR in the 30+ range, which is what is recommended for the QAM channels. So, I think you're on to something.
I have not been able to reproduce the higher speeds yet to confirm, even when direct connected to the modem 😞

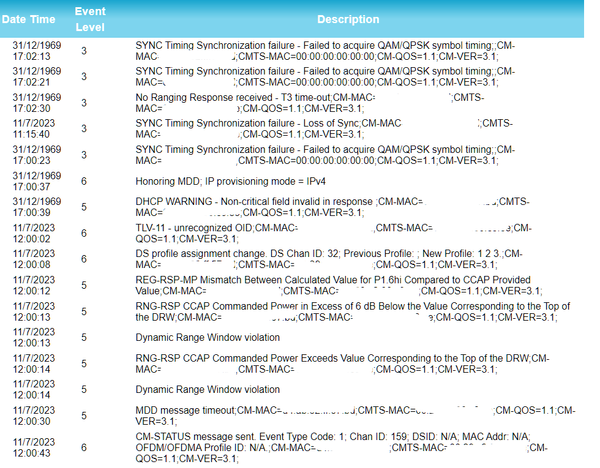

As for your other comment about the logs, I see a lot of stuff that doesn't look right. But, I don't know any better either. Nothing that stands out as fatal or critical.
